ITP-900X - ODECA SRL

Pallet truck scale for hazardous Area ATEX1,21 - 2,22

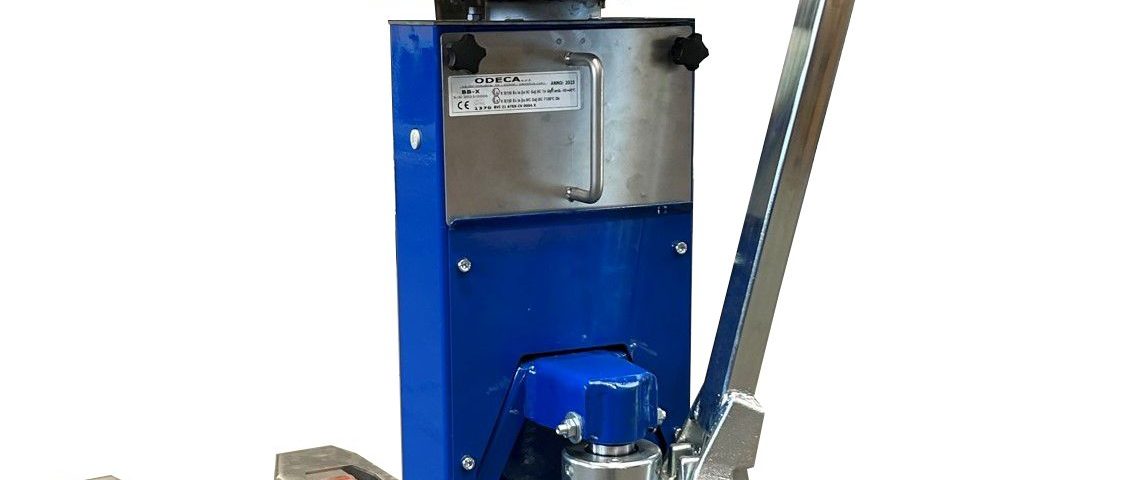

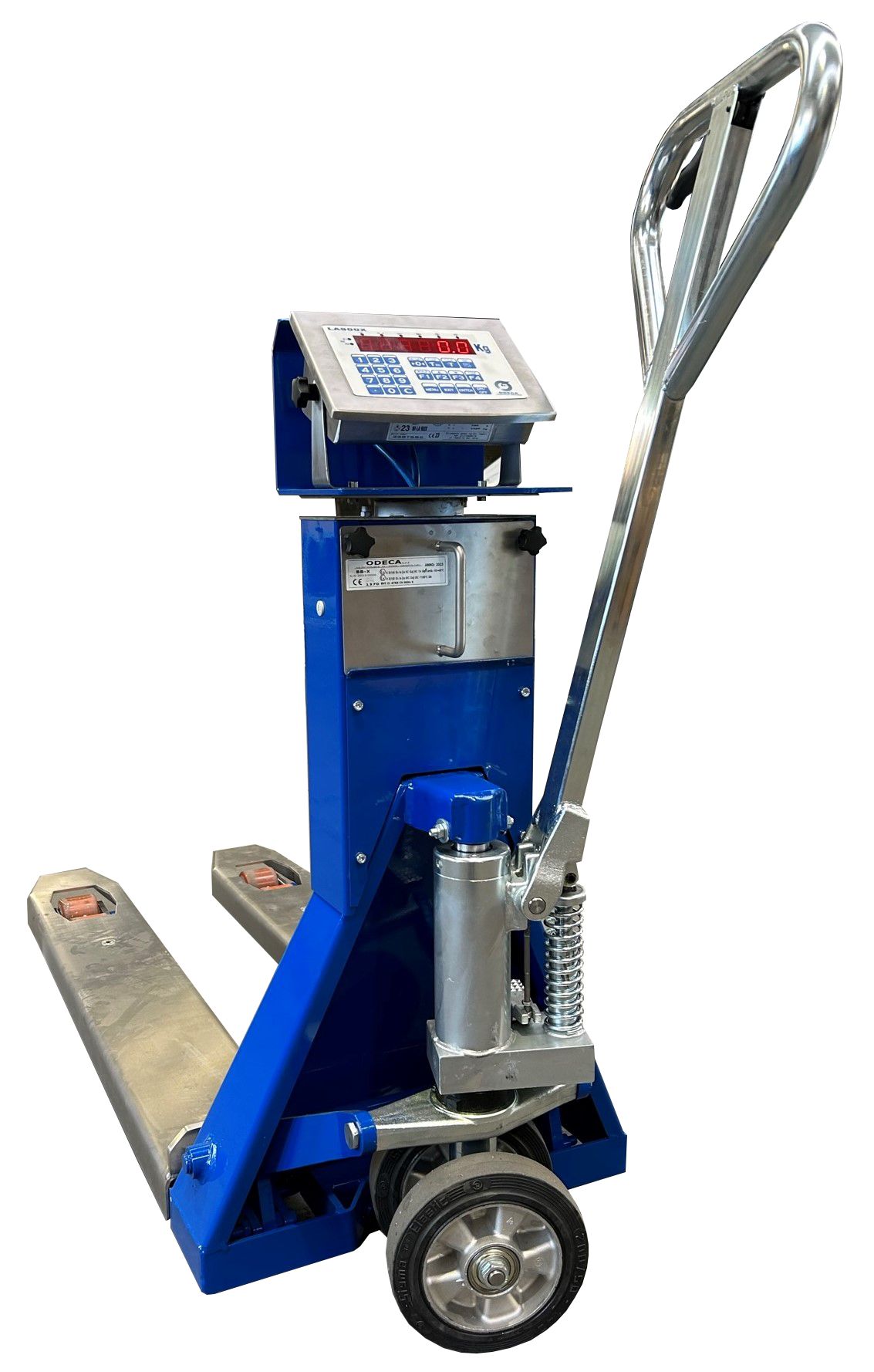

The pallet truck scale Mod. ITP-ATEX LA900 with four load cells has an heavy duty steel structure with Stainless steel forks and AISI304 Stainless steel IP65 digital display with red LED digit h. 20 mm ATEX approved for hazardous Area 1,21,2,22.

The rechargeable battery has an autonomy of 12 hours; optionally it is available also the version with zinc plated structure or with completely AISI304 Stainless steel structure.

CONTACT US

Technical features:

Digital weight indicator in Stainless steel case AISI304
Functional keyboard with 24 keys
Red LED display with six digits h. 20 mm – n° 8 Status LED diam. 5 mm
A / D converter with 24-bit resolution
Max. display weight resolution 60000 div.
Real time clock with battery backup
Fork dimensions: 1200x550x85 mm
Stainless steel share beam load cells with protection rate IP68
Junction box ATEX approved with regulation trimmers
Structure weight: 130 kg
Power supply: rechargeable battery with 20 h autonomy
Battery charger for safe area

Description	Capacity	Div.
Painted structure with Stainless steel forks	600 kg	200 g
Painted structure with Stainless steel forks	1500 kg	500 g
Painted structure with Stainless steel forks	2000 kg	1000 g
Zinc plated structure with Stainless steel forks	600 kg	200 g
Zinc plated structure with Stainless steel forks	1500 kg	500 g
Zinc plated structure with Stainless steel forks	2000 kg	1000 g
Completely Stainless steel structure	600 kg	200 g
Completely Stainless steel structure	1500 kg	500 g
