VI704

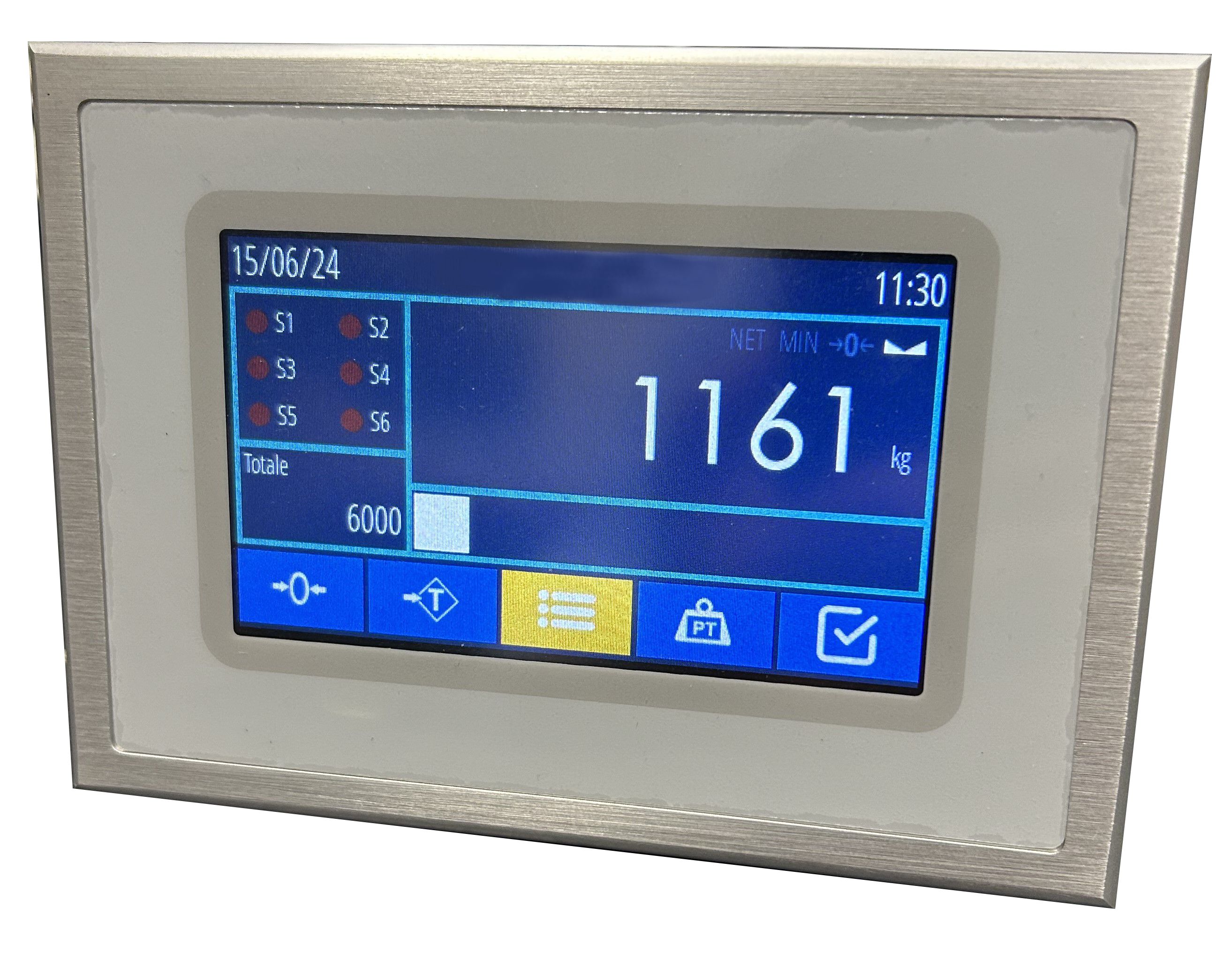

Panel weight indicator with 4.3" color touch screen display

Panel weight indicator with 4.3″ color touch screen display.
The 24 bit A/D converter (16,777,216 internal points) allows the weight to be displayed with a maximum displayable resolution of 600,000 div.
The VI704 weight indicator It is metrologically approved up to 10000 div. in single field or multifield with two or three weighing fields.
As standard it is equipped with 6 logical outputs and 6 opto-isolated inputs, RS232 data output, RS485 data output and USB Host

Characteristics

  • Panel case made of aluminium 150x106x35 suitable for panel mounting with protection rate Ip65
  • Color LCD display 4,2 backlit
  • Resistive touch screen
  • CE Approval according to UNI EN 45501
  • A/D 24 bit converter ( 16.777.216 internal points )
  • Metrological division : up to 10000 in single range , or Multirange with two or three ranges
  • Load cells power supply : 5 Vdc ( Max. 8 350 Ohm load cells)
  • N° 2 separated load cell input channels
  • Power supply 230 Vac

I/O Section

  • COM1: RS485
  • COM2: RS232
  • COM3: RS485 for external options
  • COM2: optional fieldbus with plugin module (Profibus, Profinet, Ethernet IP, Ethercat , CANopen )
  • N° 6 output relè ( Max 0,5 A – 110 Vac / 30 Vdc )
  • N° 6 logical input (12/24 Vdc esterna)
  • Max n° 4 external optional modules with 4 inout / 8 output each
  • Analog Output (0-5V ; 0-10V ; 0-20mA ; 4-20mA) (Optional)

General functions

  • Set Points ( n° 6 programmable weight set )
  • One component batch
  • 10 components batch

User Manual

Download User Manual
